Swing Joint
Swing Joint

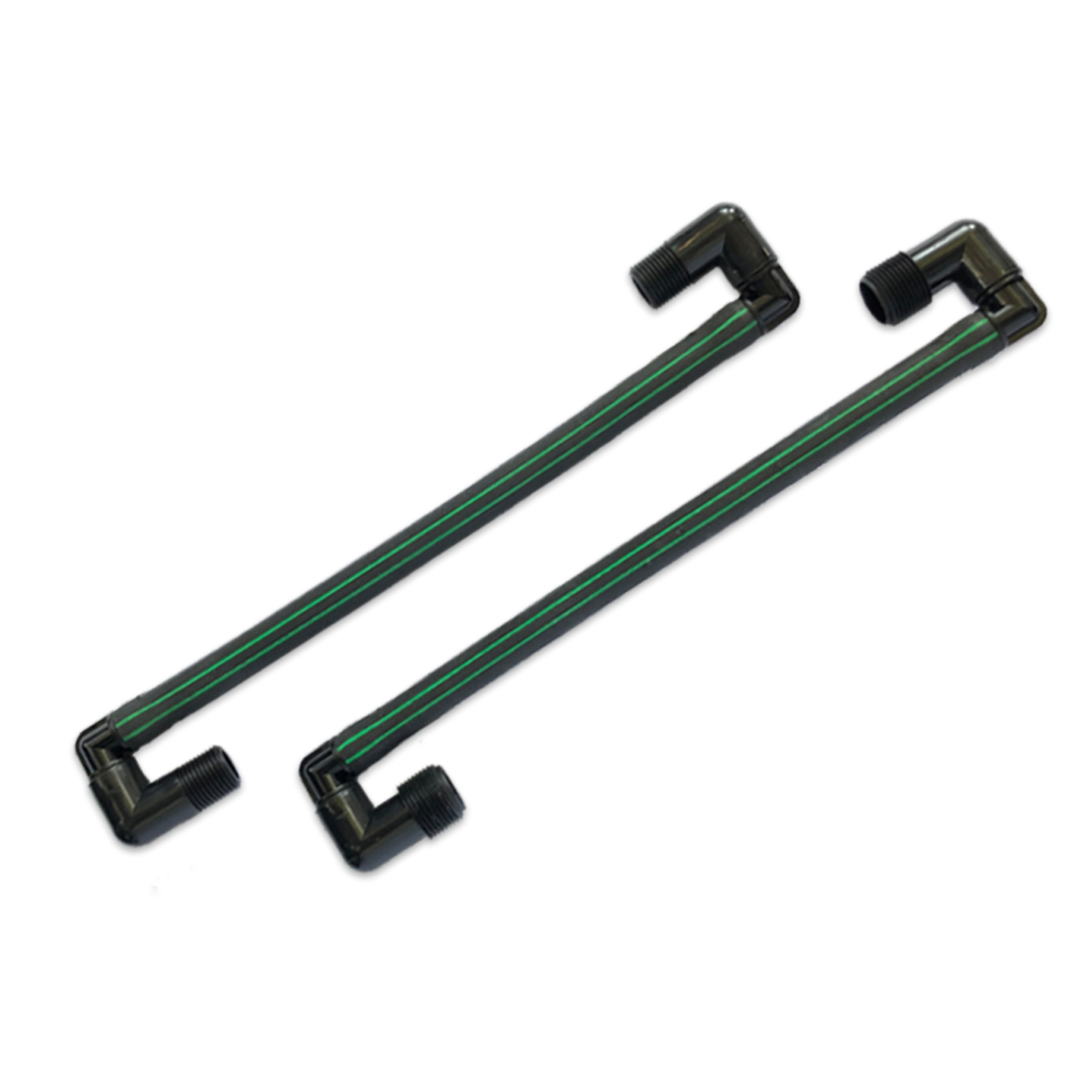

Swing joints connects heads to lateral pipes. This low-cost reliable, and flexible connection prevents heads or pipes from breaking when run over by equipment and allows easy adjustments of the heads to grade.
Features
- Available in two variants: MI 10SJ (1/2″ x 1/2″ Male Threaded Connection) and MI 20SJ (3/4″ x 3/4″ Male Threaded Connection).
- Operating pressure can reach up to 6 kg/cm2.
- Surge pressure capability of up to 10 kg/cm2.
- Temperature resistance of up to 60°C.
- Maximum flow rate of 1800 Litres per hour.
- Pressure loss at 1400 LPH is 0.15 kg/cm2.
- The swing assemblies have an operating range that matches or exceeds most 1/2″ sprays and 3/4″ rotors.
- Quality pre-assembled swing assemblies save installation time.
- Flexible swing arm and joints allow easy adjustment of heads to the desired grade.
- Flexible parts minimize the risk of leaks and are resistant to breaking or cracking under stress compared to rigid fittings.
