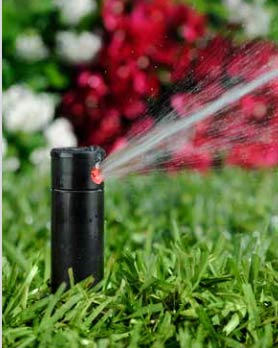

RPS 75
RPS 75
A wide selection of nozzles, including standard and low angle, provides flexibility in system design.The K-Rain® patented reversing mechanism feature ensures continuous reverse and return. With a wide selection of standard and low angle nozzles, the RPS™ 75 provides matched precipitation. It is a direct replacement for Hunter® PGP® rotors.
Features
- Right Position Start: Rotor rotates counterclockwise from a fixed right start position.
- Includes 5 Free Check Valve Assemblies Per Box.
- Riser Fits in Existing Hunter® PGP® cans: Simply unscrew the existing riser from the PGP® can and replace it with the RPS™ 75 riser.
- Top Adjustment: Adjusts from the right start position.
- Full and Part Circle Rotation: Provides a full range of adjustment from 40° to 360°.
- Non-flushing Wiper Seal: Reduces leaks caused by debris trapped under the seal.
- 3/4″ (1.9 cm) Inlet: Replaces all standard rotors.
- Ideal for Low Flow Applications.
- Wide Selection of Nozzles: Including standard and low angle, provides flexibility in system design.
Specifications
- Inlet: 3/4″ (1.9 cm) Threaded NPT
- Arc Adjustment Range: 40° – 360°
- Flow Range: 0.75 – 8.2 GPM (2.6 – 32.6 LPM)
- Pressure Rating: 30 – 70 PSI (2.1 – 4.8 bars)
- Precipitation Rate: 0.16 – 1.01 in/hr (4 – 26 mm/hr) (Depending on Spacing and Nozzle Used)
- Overall Height (Popped Down): 7 3/8″ (19.7 cm)
- Recommended Spacing: 25′ – 45′ (7.6 – 13.7 m)
- Radius: 22′ – 51′ (6.7 – 15.5 m)
- Nozzle Trajectory: 26°
- 8 Standard and 4 Low Angle Nozzles Included
- Riser Height: 4″ (10.2 cm)
