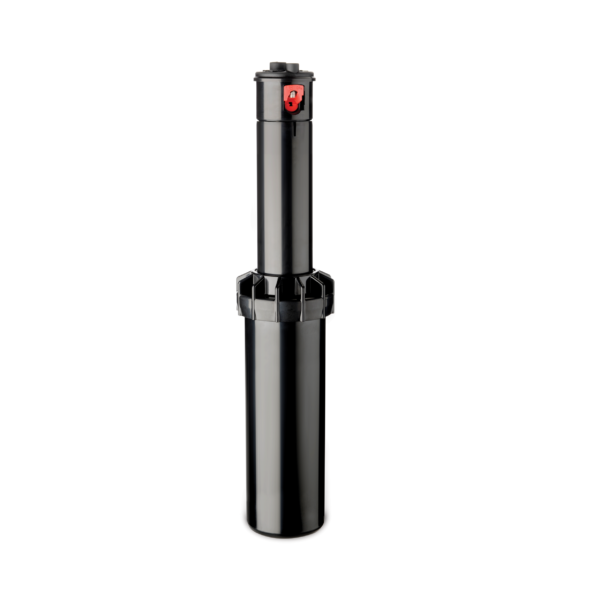

Super Pro
Super Pro
SuperPro® with Intelligent Flow Technology®allows distance and water flow to be reduced simultaneously and proportionately.Patented Intelligent Flow Technology® allows the reduction of distance while reducing the flow rate up to 50%! Water savings of up to 30% is achievable with this patented feature.
Features
- Revolutionary Patented Easy Arc Set: Simplified arc set allows for wet or dry adjustment in seconds.
- 2 in 1 Adjustable or Continuous Rotation: Provides a full range of adjustment from 40° to continuous 360°.
- Patented Arc Set Degree Markings: Clearly indicates the current watering pattern, simplifies arc set adjustment.
- Arc Memory Clutch: Prevents internal gear damage and returns the rotor to its prior setting automatically if the nozzle turret is forced out of adjustment.
- Time Proven Patented Reversing Mechanism: Assures continuous reverse and return over a 35-year history.
- Ratcheting Riser: Allows for easy adjustment of your left starting position with a simple turn of the riser.
- Rubber Cover: Seals out dirt and increases product durability.
- Optional Check Valve: Prevents low head drainage.
- Rugged Stainless Steel Spring: 0.093 gauge 302 stainless steel spring extends the life of the rotor.
Specifications
- Inlet: 3/4″ (1.9 cm) Threaded NPT
- Arc Adjustment Range: 40° to Continuous 360°
- Flow Range: 0.5 – 9.5 GPM (1.9 – 36 LPM)
- Pressure Rating: 20 – 70 PSI (1.4 – 4.8 bar)
- Precipitation Rate: 0.21 – 1.17 in/hr (5.39 – 30.89 mm/hr) (Depending on Spacing and Nozzle Used)
- Overall Height (Popped Down): 7 1/2″ (19 cm)
- Recommended Spacing: 28′ – 44′ (8.5 – 13.4 m)
- Radius: 26′ – 46′ (7.9 – 14.0 m)
- Nozzle Trajectory: 26°
- Low Angle Nozzle Trajectory: 12°
- Standard and Low Angle Nozzles Included
- Riser Height: 4″ (10.2 cm)
